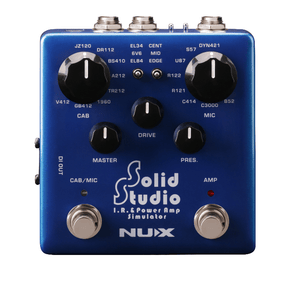

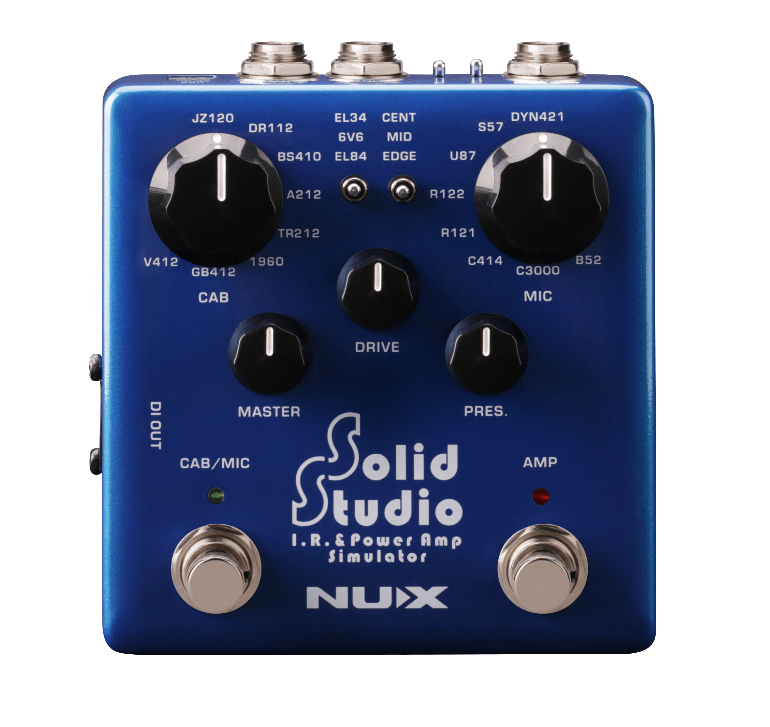

NUX Solid Studio (NSS-5) IR & Power Amp Simulator
The New Era of Mic-ing!
NUX Solid Studio was created and designed to address: limited gear availability, and the cumbersome transport reality of physical amp/speaker cabinets.
NUX is proud to introduce the new Verdugo series Solid Studio IR & Power Amp simulator, a pedal version of the most classic amp/cabinet scenarios including microphones and power amp tubes. Over many years of research, Solid Studio was specifically developed to fill the essential needs of discerning musicians and sound technicians, including the art of mic-ing instrument amplifiers on stage or in the studio. Solid Studio provides ease-of-use, reliability, versatility, and, above all, incredible audio quality.
Virtual mic-ing is achieved by choosing 1 cabinet and 1 microphone, and fine-tuning the position of the microphone using the mic position switch. Plus, you can add the tube sound by engaging the power amp simulation.

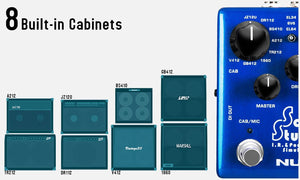

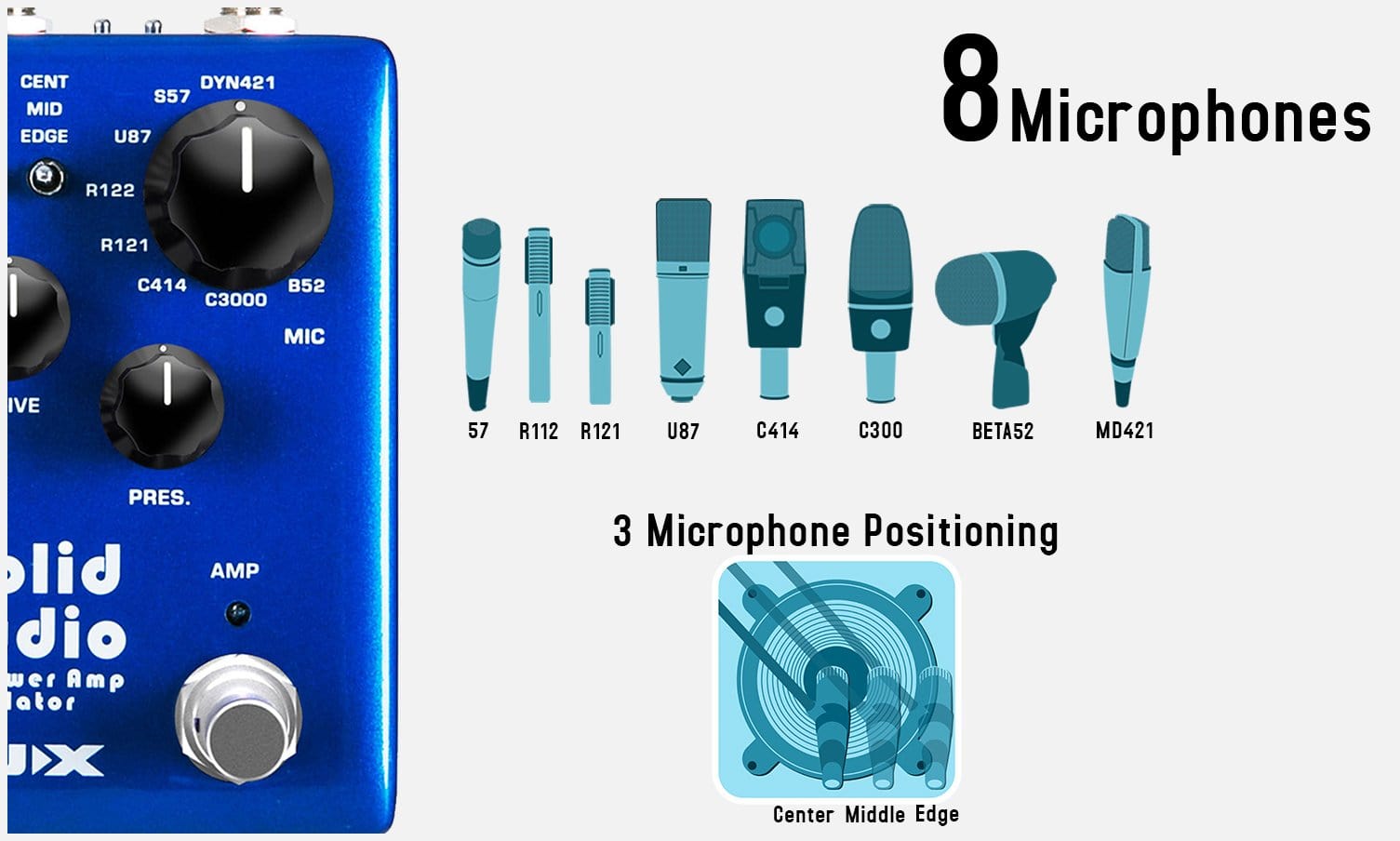

Solid Studio comes with 8 speaker cabinet simulations. And there are 8 microphone models you can combine with any cabinets. Also, you can adjust microphone position for fine tuning.

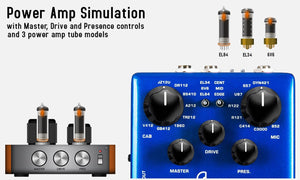

Solid Studio Power Amp Simulation produces a warm tube-like sound and you can choose one of three power tubes for your essential sound needs.

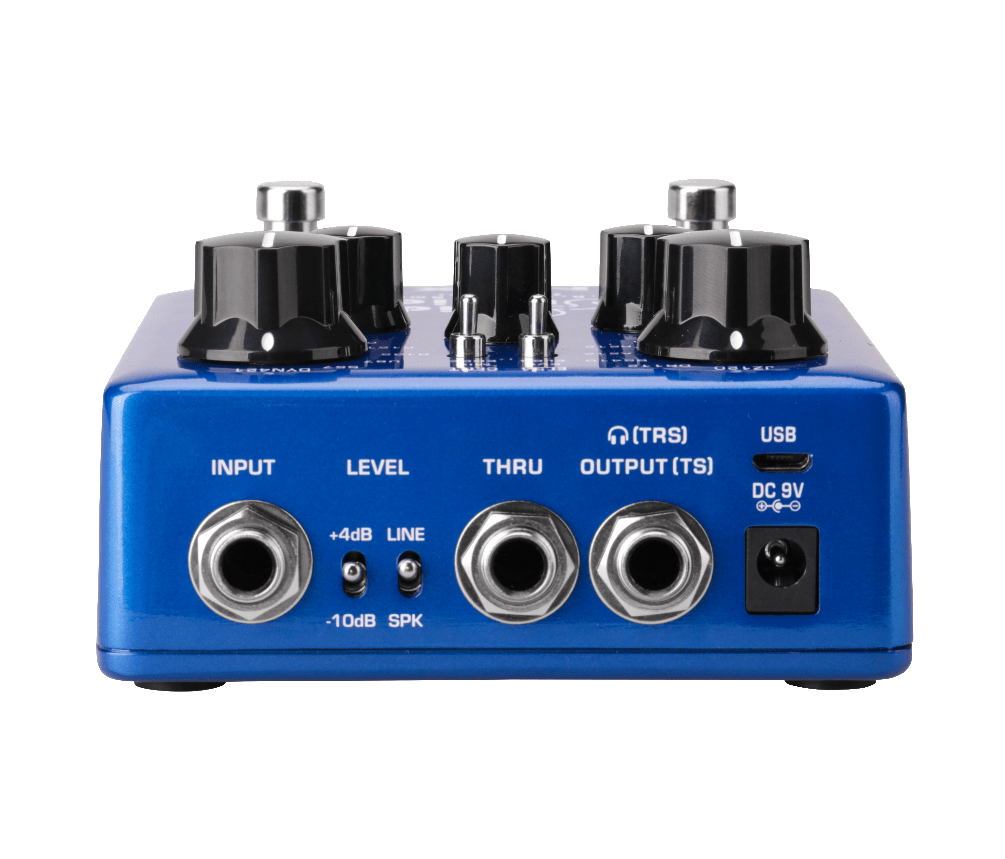

NUX Solid Studio has 6.35mm mono input with input signal level toggle switch (-10dB / +4dB). And it has 3 outputs; simulation dedicated (TRS) STEREO OUTPUT and DI OUT, and a bypass "THRU" output.
Solid Studio offers a variety of connection ways and it can fit any desired spot on your signal chain to use all the cabinet/mic simulations efficient.

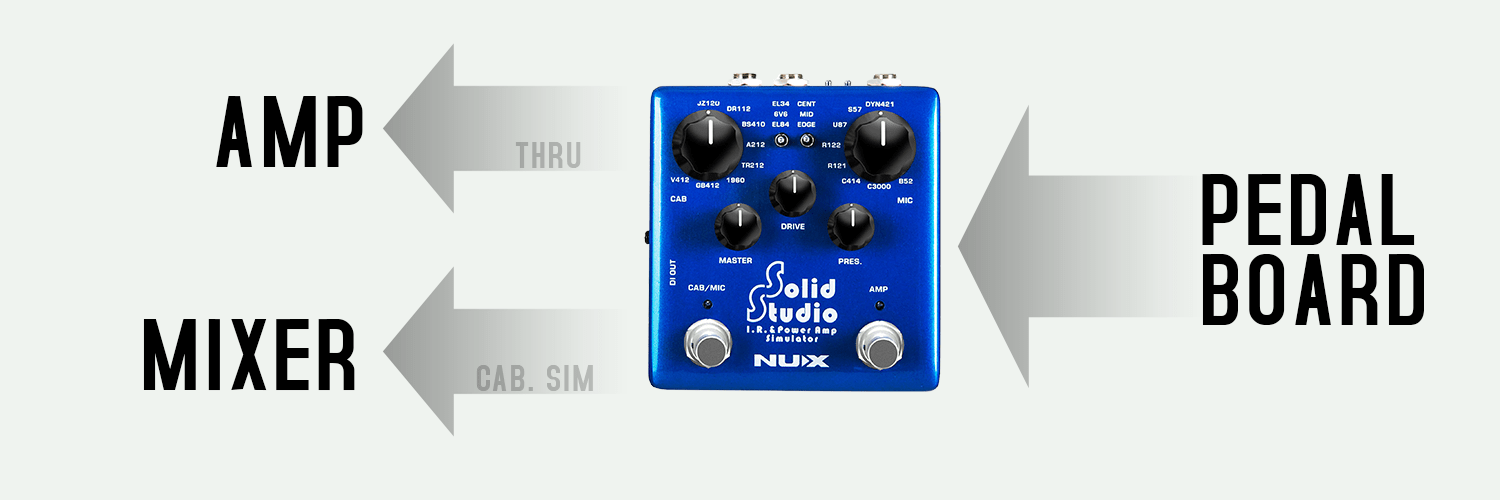

You can place the Solid Studio at the end of your pedal board, and you can send the simulated sound to the mixer while you can send your original signal to the amp. It's an alternate option for amp / cabinet mic-ing on stage.

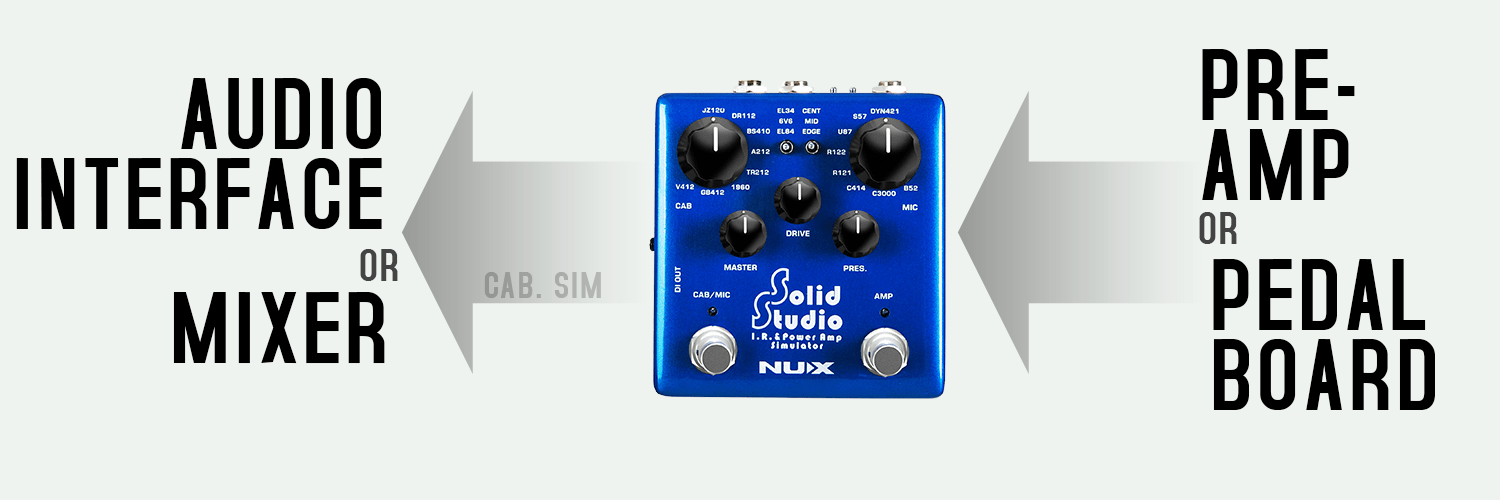

Direct connection to mixer or audio interface for recording. It gives more alternative cabinet options to record your favorite amplifier sound, especially if there is no chance to use any loudspeaker.

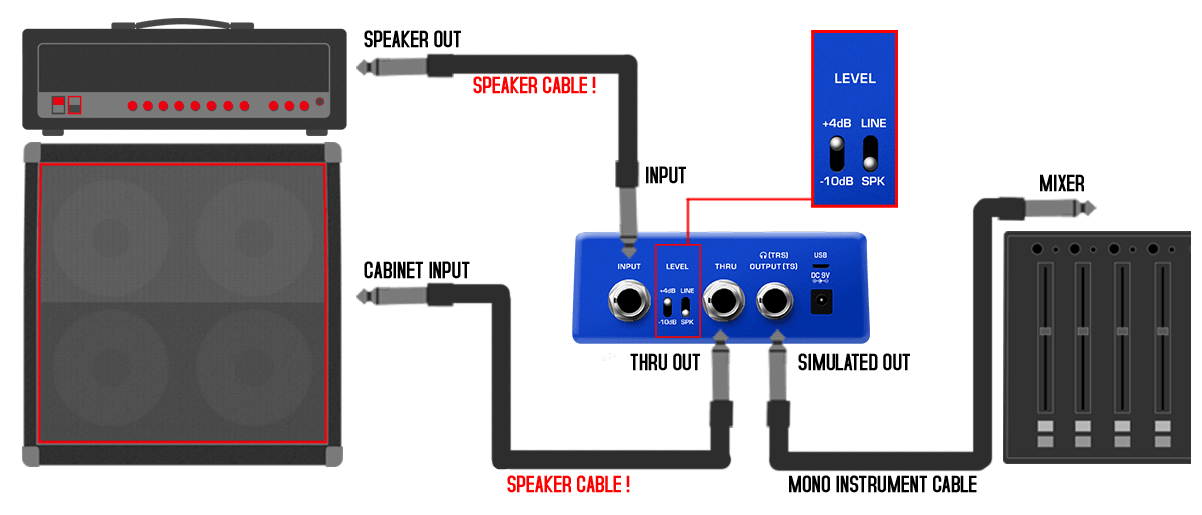

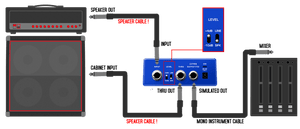

You can place the Solid Studio between the amp and the cabinet. You can send the loud signal from the amp's cabinet output to the Solid Studio, and you can send the original signal to the cabinet, simulated signal to the mixer/audio interface.
When you use the advanced connection method:
The amplifier's speaker output must be connected to the Solid Studio's input by a SPEAKER CABLE
The Solid Studio's input mode must be switched to +4 dB
The Solid Studio's THRU output must be connected to the speaker cabinet's input by a SPEAKER CABLE
The Solid Studio's output mode must be selected as SPK (SPEAKER)
IR file support
You can easily emulate the sound of any guitar cabinet by loading different IR (Impulse response) files to NUX Solid Studio.
- 8 Speaker Cabinets
- 8 Microphones and 3 Mic. Positions
- 3 Power Amp Tubes
- Master, Drive and Presence Controls (Power Amp)
- Simulation Dedicated Output and DI Out
- Thru Output
- Thru Output Modes (Line / Speaker)
- Input Level Switch (-10dB / +4dB)
- USB Port for loading 3rd party IR files, software control and firmware update
Shipping: Free Shipping!
In the Nashville Metro area? Local pickup available! Email firstname.lastname@example.org to set up an appointment for pickup. If close enough, we will deliver!
Tax Advisory: Tennessee residents will be charged a sales tax of 9.75% on the purchase. Since we are a TN-based business and only have a nexus presence in TN, we have to charge tax for TN residents only. Other states, unless executed differently by their state government to charge taxes on online purchases, are exempt from paying taxes on Tensolo Music Co. purchases.
Please feel free to email email@example.com with any questions.
Tensolo Music Co. is a NUX Authorized Dealer!
